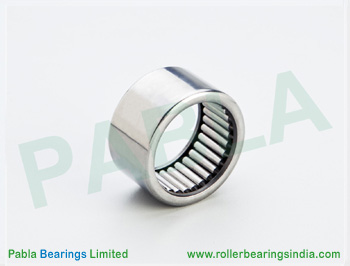

DL 2820

Pabla Product Name : DL 2820

Also known as (Similar Names) : DL2820 , DL 2820 , DL 28 20 , HN2820 , HN 2820 , HN 28 20 , DL283520 , DL 283520 , DL 28 35 20 , HN283520 , HN 283520 , HN 28 35 20

Type: Full Complement Open End

Pabla Part No. 11189

Dimension: 28 x 35 x 20

Inner Diameter (Fw) = 28 mm

Outer Diameter (D) = 35 mm

Length (C)=20 mm , Tolerance = +0.00 , -0.20 mm

Radius = 0.80 mm Min.

Number of rollers = 31 Nos.

Weight = 0.047 Kg

Life Cycle,Dynamic Load and Speed

Basic dynamic load rating (radial) = 30000 N

Basic static load rating (radial) = 67000 N

Fatigue limit load (radial) = 9000 N

( N = newton , 1 N = 1 Kg x 9.85 )

Life cycle = 1,00,000 Kilometers average

Limiting speed Approx = 7200 RPM ( Grease application)

Limiting speed Approx = 11000 RPM ( Oil application)

Operating temp.(Ideal) = - 50 Degree celsius , + 100 Degree celsius
