DBF1210

Pabla Product Name : DBF 121610

Also known as (Similar Names) : BK 121610 , BK121610 , BK 12 16 10 , BK 1210 , BK1210 , BK 12 10 , DBF 12 16 10 , DBF 121610

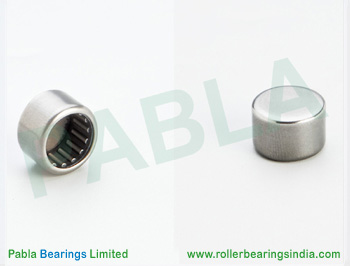

Type: Needle Roller Bearing Shell Type with Closed End (Caged)

Pabla Part No. 11351 , and compatible with : Lucas Tvs Part No. 2625 4707$$

Dimension: 12 x 16 x 10

Inner Diameter (Fw) = 12 mm

Outer Diameter (D) = 16 mm

Length (C)=10 mm , Tolerance = +0.00 , -0.20 mm

Radius = 0.80 mm Min.

Number of rollers = 15 Nos.

Weight = 0.006 Kg

Life Cycle,Dynamic Load and Speed

Basic dynamic load rating (radial) = 4950 N

Basic static load rating (radial) = 6200 N

Fatigue limit load (radial) = 800 N

( N = newton , 1 N = 1 Kg x 9.85 )

Life cycle = 1,00,000 Kilometers average

Limiting speed Approx = 18000 RPM ( Grease application)

Limiting speed Approx = 28000 RPM ( Oil application)

Operating temp.(Ideal) = - 50 Degree celsius , + 100 Degree celsius
