DB2016

Pabla Product Name : DC 202616

Also known as (Similar Names) : HK 202616 , HK202616 , HK 20 26 16 , HK 2016 , HK2016 , HK 20 16,DB 2016,DB 202616,DB 20 26 16

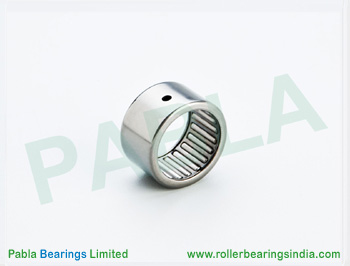

Type: Needle Roller Bearing Shell Type ( Caged)

Pabla Part No. 12129

Dimension: 20 x 26 x 16

Inner Diameter (Fw) = 20 mm

Outer Diameter (D) = 26 mm

Length (C)=16 mm , Tolerance = +0.00 , -0.20 mm

Radius = 0.80 mm Min.

Number of rollers = 21 Nos.

Weight = 0.023 Kg

Life Cycle,Dynamic Load and Speed

Basic dynamic load rating (radial) = 12700 N

Basic static load rating (radial) = 20100 N

Fatigue limit load (radial) = 2500 N

( N = newton , 1 N = 1 Kg x 9.85 )

Life cycle = 1,00,000 Kilometers average

Limiting speed Approx = 11000 RPM ( Grease application)

Limiting speed Approx = 16000 RPM ( Oil application)

Operating temp.(Ideal) = - 50 Degree celsius , + 100 Degree celsius
