DB1812

Pabla Product Name : DC 182412

Also known as (Similar Names) : HK 182412 , HK182412 , HK 18 24 12 , HK 1812 , HK1812 , HK 18 12,DB 1812,DB 182412,DB 18 24 12

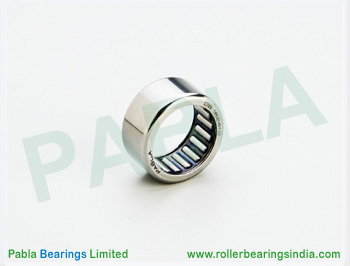

Type: Needle Roller Bearing Shell Type ( Caged)

Pabla Part No. 19159

Dimension: 18 x 24 x 12

Inner Diameter (Fw) = 18 mm

Outer Diameter (D) = 24 mm

Length (C)=12 mm , Tolerance = +0.00 , -0.20 mm

Radius = 0.80 mm Min.

Number of rollers = 18 Nos.

Weight = 0.0135 Kg

Life Cycle,Dynamic Load and Speed

Basic dynamic load rating (radial) = 8100 N

Basic static load rating (radial) = 10900 N

Fatigue limit load (radial) = 1300 N

( N = newton , 1 N = 1 Kg x 9.85 )

Life cycle = 1,00,000 Kilometers average

Limiting speed Approx = 12000 RPM ( Grease application)

Limiting speed Approx = 18000 RPM ( Oil application)

Operating temp.(Ideal) = - 50 Degree celsius , + 100 Degree celsius
