DB1712

Pabla Product Name : DC 172312

Also known as (Similar Names) : HK 172312 , HK172312 , HK 17 23 12 , HK 1712 , HK1712 , HK 17 12,DB 1712,DB 172312,DB 17 23 12

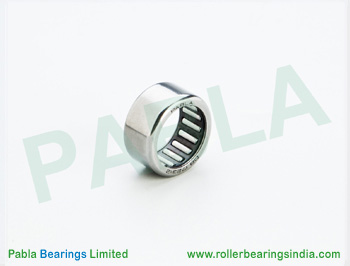

Type: Needle Roller Bearing Shell Type ( Caged)

Pabla Part No. 19139

Dimension: 17 x 23 x 12

Inner Diameter (Fw) = 17 mm

Outer Diameter (D) = 23 mm

Length (C)=12 mm , Tolerance = +0.00 , -0.20 mm

Radius = 0.80 mm Min.

Number of rollers = 17 Nos.

Weight = 0.015 Kg

Life Cycle,Dynamic Load and Speed

Basic dynamic load rating (radial) = 7900 N

Basic static load rating (radial) = 10300 N

Fatigue limit load (radial) = 1230 N

( N = newton , 1 N = 1 Kg x 9.85 )

Life cycle = 1,00,000 Kilometers average

Limiting speed Approx = 13000 RPM ( Grease application)

Limiting speed Approx = 20000 RPM ( Oil application)

Operating temp.(Ideal) = - 50 Degree celsius , + 100 Degree celsius
