DB1616

Pabla Product Name : DC 162216

Also known as (Similar Names) : HK 162216 , HK162216 , HK 16 22 16 , HK 1616 , HK1616 , HK 16 16,DB 1616,DB 162216,DB 16 22 16

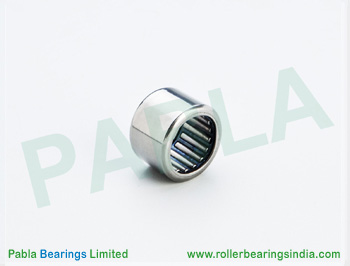

Type: Needle Roller Bearing Shell Type ( Caged)

Pabla Part No. 11191

Dimension: 16 x 22 x 16

Inner Diameter (Fw) = 16 mm

Outer Diameter (D) = 22 mm

Length (C)=16 mm , Tolerance = +0.00 , -0.20 mm

Radius = 0.80 mm Min.

Number of rollers = 16 Nos.

Weight = 0.0175 Kg

Life Cycle,Dynamic Load and Speed

Basic dynamic load rating (radial) = 10900 N

Basic static load rating (radial) = 15300 N

Fatigue limit load (radial) = 1900 N

( N = newton , 1 N = 1 Kg x 9.85 )

Life cycle = 1,00,000 Kilometers average

Limiting speed Approx = 14000 RPM ( Grease application)

Limiting speed Approx = 21000 RPM ( Oil application)

Operating temp.(Ideal) = - 50 Degree celsius , + 100 Degree celsius
