WC 1512

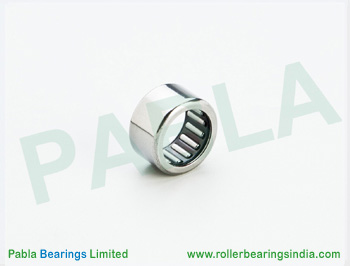

Pabla Product Name : DC 152112

Also known as (Similar Names) : HK 152112 , HK152112 , HK 15 21 12 , HK 1512 , HK1512 , HK 15 12

Type: Needle Roller Bearing Shell Type ( Caged)

Pabla Part No. 24179

Dimension: 15 x 21 x 12

Inner Diameter (Fw) = 15 mm

Outer Diameter (D) = 21 mm

Length (C)=12 mm , Tolerance = +0.00 , -0.20 mm

Radius = 0.80 mm Min.

Number of rollers = 15 Nos.

Weight = 0.0111 Kg

Life Cycle,Dynamic Load and Speed

Basic dynamic load rating (radial) = 7900 N

Basic static load rating (radial) = 9400 N

Fatigue limit load (radial) = 1150 N

( N = newton , 1 N = 1 Kg x 9.85 )

Life cycle = 1,00,000 Kilometers average

Limiting speed Approx = 14000 RPM ( Grease application)

Limiting speed Approx = 21000 RPM ( Oil application)

Operating temp.(Ideal) = - 50 Degree celsius , + 100 Degree celsius
