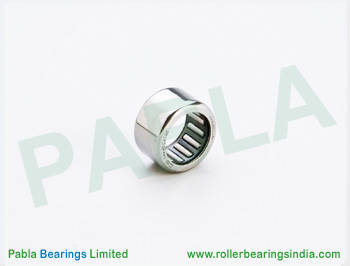

DC 1412

Pabla Product Name : DC 142012

Also known as (Similar Names) : HK 142012 , HK142012 , HK 14 20 12 , HK 1412 , HK1412 , HK 14 12

Type: Needle Roller Bearing Shell Type ( Caged)

Pabla Part No. 24180

Dimension: 14 x 20 x 12

Inner Diameter (Fw) = 14 mm

Outer Diameter (D) = 20 mm

Length (C)=12 mm , Tolerance = +0.00 , -0.20 mm

Radius = 0.80 mm Min.

Number of rollers = 14 Nos.

Weight = 0.0135 Kg

Life Cycle,Dynamic Load and Speed

Basic dynamic load rating (radial) = 7100 N

Basic static load rating (radial) = 8500 N

Fatigue limit load (radial) = 1010 N

( N = newton , 1 N = 1 Kg x 9.85 )

Life cycle = 1,00,000 Kilometers average

Limiting speed Approx = 14000 RPM ( Grease application)

Limiting speed Approx = 21000 RPM ( Oil application)

Operating temp.(Ideal) = - 50 Degree celsius , + 100 Degree celsius
