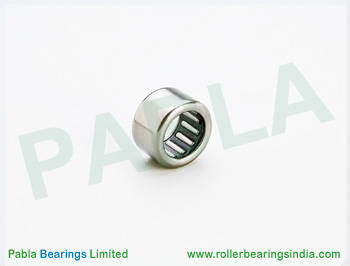

DC 1312

Pabla Product Name : DC 131912

Also known as (Similar Names) : HK 131912 , HK131912 , HK 13 19 12 , HK 1312 , HK1312 , HK 13 12

Type: Needle Roller Bearing Shell Type ( Caged)

Pabla Part No. 19157

Dimension: 13 x 19 x 12

Inner Diameter (Fw) = 13 mm

Outer Diameter (D) = 19 mm

Length (C)=12 mm , Tolerance = +0.00 , -0.20 mm

Radius = 0.80 mm Min.

Number of rollers = 13 Nos.

Weight = 0.0117 Kg

Life Cycle,Dynamic Load and Speed

Basic dynamic load rating (radial) = 6800 N

Basic static load rating (radial) = 7900 N

Fatigue limit load (radial) = 940 N

( N = newton , 1 N = 1 Kg x 9.85 )

Life cycle = 1,00,000 Kilometers average

Limiting speed Approx = 14000 RPM ( Grease application)

Limiting speed Approx = 22000 RPM ( Oil application)

Operating temp.(Ideal) = - 50 Degree celsius , + 100 Degree celsius
