DC 1212

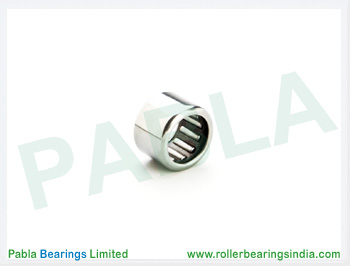

Pabla Product Name : DC 121712

Also known as (Similar Names) : HK 121712 , HK121712 , HK 12 17 12 , HK 1212 , HK1212 , HK 12 12

Type: Needle Roller Bearing Shell Type ( Caged)

Pabla Part No. 29123

Dimension: 12 x 17 x 12

Inner Diameter (Fw) = 12 mm

Outer Diameter (D) = 17 mm

Length (C)=12 mm , Tolerance = +0.00 , -0.20 mm

Radius = 0.80 mm Min.

Number of rollers = 12 Nos.

Weight = 0.0072 Kg

Life Cycle,Dynamic Load and Speed

Basic dynamic load rating (radial) = 6500 N

Basic static load rating (radial) = 7300 N

Fatigue limit load (radial) = 860 N

( N = newton , 1 N = 1 Kg x 9.85 )

Life cycle = 1,00,000 Kilometers average

Limiting speed Approx = 14000 RPM ( Grease application)

Limiting speed Approx = 22000 RPM ( Oil application)

Operating temp.(Ideal) = - 50 Degree celsius , + 100 Degree celsius
