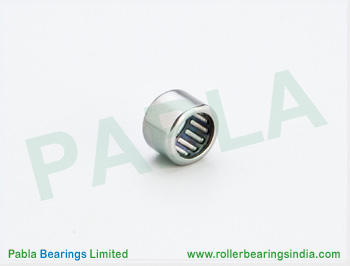

Pabla Product Name : DC 101410

Also known as (Similar Names) : HK 101410 , HK101410 , HK 10 14 10 , HK 1010 , HK1010 , HK 10 10

Type: Needle Roller Bearing Shell Type ( Caged)

Pabla Part No. 11706

Dimension: 10 x 14 x 10

Inner Diameter (Fw) = 10 mm

Outer Diameter (D) = 14 mm

Length (C)=10 mm , Tolerance = +0.00 , -0.20 mm

Radius = 0.80 mm Min.

Number of rollers = 14 Nos.

Weight = 0.0043 Kg

Life Cycle,Dynamic Load and Speed

Basic dynamic load rating (radial) = 4400 N

Basic static load rating (radial) = 5100 N

Fatigue limit load (radial) = 650 N

( N = newton , 1 N = 1 Kg x 9.85 )

Life cycle = 1,00,000 Kilometers average

Limiting speed Approx = 19000 RPM ( Grease application)

Limiting speed Approx = 29000 RPM ( Oil application)

Operating temp.(Ideal) = - 50 Degree celsius , + 100 Degree celsius
