SCE188

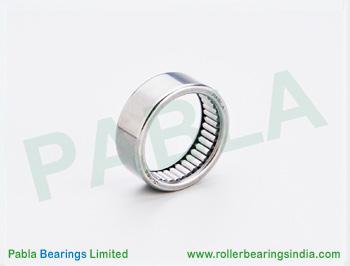

Pabla Product Name : SCE 188

Also known as (Similar Names) : B 188 , B188 , B-188 , SCE188 , SCE 188 , JL188

Type: Full Complement Bearings Open Ends ( Inch Series )

Pabla Part No. 11163

Dimension: 28.57 x 34.92 x 12.70

Inner Diameter (Fw) = 28.57 mm

Outer Diameter (D) = 34.92 mm

Length (C)=12.7 mm , Tolerance = +0.00 , -0.20 mm

Radius = 0.80 mm Min.

Number of rollers = 41 Nos.

Weight = 0.024 Kg

Life Cycle,Dynamic Load and Speed

Basic dynamic load rating (radial) = 12800 N

Basic static load rating (radial) = 20200 N

( N = newton , 1 N = 1 Kg x 9.85 )

Life cycle = 1,00,000 Kilometers average

Limiting speed Approx = 2500 RPM ( Grease application)

Limiting speed Approx = 3800 RPM ( Oil application)

Operating temp.(Ideal) = - 50 Degree celsius , + 150 Degree celsius
