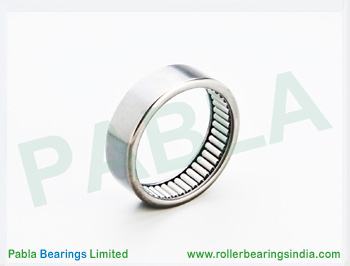

JL 228

Pabla Product Name : JL 228

Also known as (Similar Names) : B 228 , B228 , B-228 , SCE228 , SCE 228 , JL288

Type: Full Complement Bearings Open Ends ( Inch Series )

Pabla Part No. 29141

Dimension: 34.92 x 41.27 x 12.70

Inner Diameter (Fw) = 34.92 mm

Outer Diameter (Ew) = 41.27 mm

Length (Bc)=12.7 mm , Tolerance = +0.00 , -0.20 mm

Radius = 0.80 mm Min.

Number of rollers = 47 Nos.

Weight = 0.028 Kg

Life Cycle,Dynamic Load and Speed

Basic dynamic load rating (radial) = 13600 N

Basic static load rating (radial) = 23700 N

( N = newton , 1 N = 1 Kg x 9.85 )

Life cycle = 1,00,000 Kilometers average

Limiting speed Approx = 3000 RPM ( Grease application)

Limiting speed Approx = 4700 RPM ( Oil application)

Operating temp.(Ideal) = - 50 Degree celsius , + 150 Degree celsius
