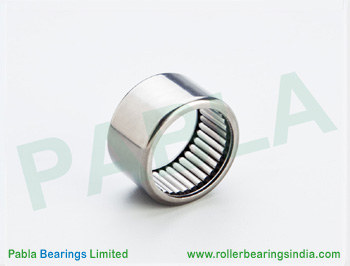

JL 1612

Pabla Product Name : JL 1612

Also known as (Similar Names) : B 1612 , B1612 , B-1612 , B 16 12 , SCE1612, SCE 1612 , SCE 16 12 , JL1612 , JL 16 12

Type: Full Complement Bearings Open Ends ( Inch Series )

Pabla Part No. 29117

Dimension: 25.40 x 31.75 x 19.05

Inner Diameter (Fw) = 25.04 mm

Outer Diameter (D) = 31.75 mm

Length (C)=19.05 mm , Tolerance = +0.00 , -0.20 mm

Radius = 0.80 mm Min.

Number of rollers = 37 Nos.

Weight = 0.032 Kg

Life Cycle,Dynamic Load and Speed

Basic dynamic load rating (radial) = 13600 N

Basic static load rating (radial) = 23700 N

( N = newton , 1 N = 1 Kg x 9.85 )

Life cycle = 1,00,000 Kilometers average

Limiting speed Approx = 18000 RPM ( Grease application)

Limiting speed Approx = 30000 RPM ( Oil application)

Operating temp.(Ideal) = - 50 Degree celsius , + 150 Degree celsius
