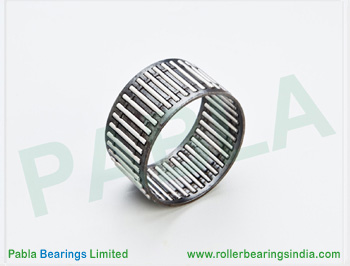

K50X55X30

Pabla Product Name : WC 505530

Also known as (Similar Names) : K 505530 , K505530 , K 50 55 30 , K 5030 , K5030 , K 50 30

Type: Cage Bearing

Pabla Part No. 29118

Dimension: 50 x 55 x 30

Inner Diameter (Fw) = 50 mm

Outer Diameter (Ew) = 55 mm

Length (Bc)=30 mm , Tolerance = +0.00 , -0.20 mm

Number of rollers = 38 Nos.

Weight = 0.057Kg

Life Cycle,Dynamic Load and Speed

Basic dynamic load rating (radial) = 39000 N

Basic static load rating (radial) = 97000 N

Fatigue limit load (radial) = 13900 N

( N = newton , 1 N = 1 Kg x 9.85 )

Life cycle = 1,00,000 Kilometers average

Limiting speed Approx = 5400 RPM ( Grease application)

Limiting speed Approx = 8400 RPM ( Oil application)

Operating temp.(Ideal) = - 50 Degree celsius , + 150 Degree celsius
