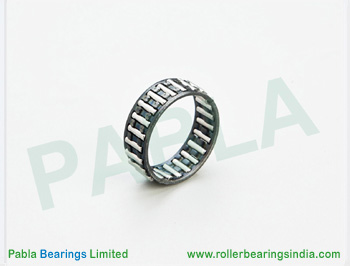

K24X28X10

Pabla Product Name : WC 242810

Also known as (Similar Names) : K 242810 , K242810 , K 24 28 10 , K 2410 , K2410 , K 24 10

Type: Cage Bearing

Pabla Part No. 27113

Dimension: 24 x 28 x 10

Inner Diameter (Fw) = 24 mm

Outer Diameter (Ew) = 28 mm

Length (Bc)=10 mm , Tolerance = +0.00 , -0.20 mm

Number of rollers = 23 Nos.

Weight = 0.0114 Kg

Life Cycle,Dynamic Load and Speed

Basic dynamic load rating (radial) = 9600 N

Basic static load rating (radial) = 14800 N

Fatigue limit load (radial) = 1840 N

( N = newton , 1 N = 1 Kg x 9.85 )

Life cycle = 1,00,000 Kilometers average

Limiting speed Approx = 12000 RPM ( Grease application)

Limiting speed Approx = 18000 RPM ( Oil application)

Operating temp.(Ideal) = - 50 Degree celsius , + 150 Degree celsius
