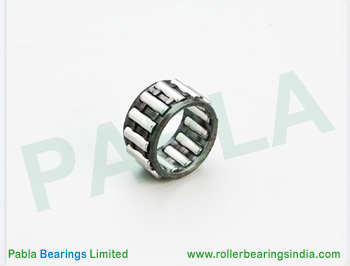

K16X22X12

Pabla Product Name : WC 162212

Also known as (Similar Names) : K 162212 , K162212 , K 16 22 12 , K 1612 , K1612 , K 16 12

Type: Cage Bearing

Pabla Part No. 20187

Dimension: 16 x 22 x 12

Inner Diameter (Fw) = 16 mm

Outer Diameter (Ew) = 22 mm

Length (Bc)=12 mm , Tolerance = +0.00 , -0.20 mm

Number of rollers = 13 Nos.

Weight = 0.0106 Kg

Life Cycle,Dynamic Load and Speed

Basic dynamic load rating (radial) = 11500 N

Basic static load rating (radial) = 12500 N

Fatigue limit load (radial) = 1780 N

( N = newton , 1 N = 1 Kg x 9.85 )

Life cycle = 1,00,000 Kilometers average

Limiting speed Approx = 19000 RPM ( Grease application)

Limiting speed Approx = 29000 RPM ( Oil application)

Operating temp.(Ideal) = - 50 Degree celsius , + 150 Degree celsius
