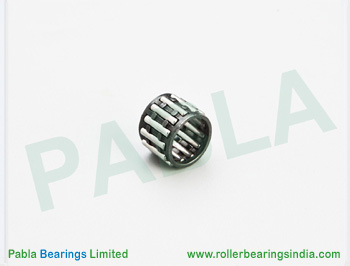

K12X16X13

Pabla Product Name : WC 121613

Also known as (Similar Names) : K 121613 , K121613 , K 12 16 13 , K 1213 , K1213 , K 12 13

Type: Cage Bearing

Pabla Part No. 26273

Dimension: 12 x 16 x 13

Inner Diameter (Fw) = 12 mm

Outer Diameter (Ew) = 16 mm

Length (Bc)=13 mm , Tolerance = +0.00 , -0.20 mm

Number of rollers = 13 Nos.

Weight = 0.008 Kg

Life Cycle,Dynamic Load and Speed

Basic dynamic load rating (radial) = 8000 N

Basic static load rating (radial) = 9400 N

Fatigue limit load (radial) = 1150 N

( N = newton , 1 N = 1 Kg x 9.85 )

Life cycle = 1,00,000 Kilometers average

Limiting speed Approx = 19000 RPM ( Grease application)

Limiting speed Approx = 30000 RPM ( Oil application)

Operating temp.(Ideal) = - 50 Degree celsius , + 150 Degree celsius
