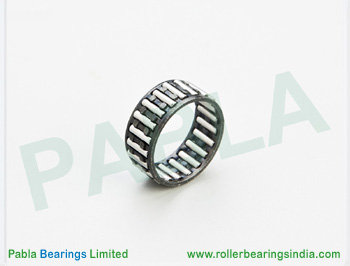

K20X24X10

Pabla Product Name : WC 202410

Also known as (Similar Names) : K 202410 , K202410 , K 20 24 10 , K 2010 , K2010 , K 20 10

Type: Cage Bearing

Pabla Part No. 27104

Dimension: 20 x 24 x 10

Inner Diameter (Fw) = 20 mm

Outer Diameter (Ew) = 24 mm

Length (Bc)=10 mm , Tolerance = +0.00 , -0.20 mm

Number of rollers = 21 Nos.

Weight = 0.0089 Kg

Life Cycle,Dynamic Load and Speed

Basic dynamic load rating (radial) = 8900 N

Basic static load rating (radial) = 12600 N

Fatigue limit load (radial) = 1570 N

( N = newton , 1 N = 1 Kg x 9.85 )

Life cycle = 1,00,000 Kilometers average

Limiting speed Approx = 14000 RPM ( Grease application)

Limiting speed Approx = 22000 RPM ( Oil application)

Operating temp.(Ideal) = - 50 Degree celsius , + 150 Degree celsius
